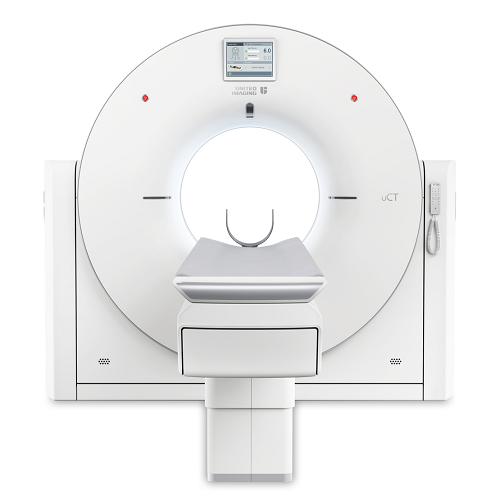

United Imaging CT Scan UCT 520
Description
-
Single-click Bone Removal
Employs different algorithms that are tailored to different applications such as carotid CTA, body CTA and virtual DSA.
-
Single-click Rib Extraction
Automatically segments the ribs and displays them separately or with the associated anatomy allowing efficient diagnosis of rib fractures.
-
EasyRegister
The most frequently used protocols are placed in the front page shortcut area for easy selection. Along with the preset patient positions, the patient registration can be completed efficiently.
-
EasyScan
Intelligently plans the exam for individual patients. Clinical parameters are automatically adapted to the needs of the particular patient.
-
EasyLogic
The system anticipates the operator’s needs and prepares itself to reduce delays. Minimizes the wait time between operation procedures and accelerates CT exam workflow significantly.
-
Fully Integrated Design
Innovative Through-Silicon-Via (TSV) Technology. cm to μm level signal conducting path shortening. Ultra-low noise signal output.
-
0.55mm Pixel Size
0.5mm high resolution acquisition in all FOVs and collimations. 22mm coverage in Z-plane. 34560 large number of detector elements.
-
KARL 3D Iterative Denoising
The algorithm is performed in both the projection and image spaces to reduce dose while preserving image quality.
-
70kV Scan Mode
70kV Dose reduction can increase SNR for Iodine-based contrast agents especially for small BMI or younger patients.
-
uDose 3D Dose Modulation
Based on anatomic structure information, it generates optimized 3D dose distribution plan.
Reducing total cost of ownership for operation.
-
Reliable Components
Light-weight tube with reliable design and good serviceability. Self-cleaning carbon brushes for improved slip-ring reliability.
-
Green Mode
Switching the system into uECO mode during night or when the system is idle saves 30% power compared to conventional standby modes.
-
Small Footprint
uCT 520 requires a minimum installation area of 9m2.
-
Lung Nodule Analysis*
A complete clinical solution including marking, segmentation and measurement assistance.
-
Lung Density Analysis*
Automatic lung extraction and contour editing with pulmonary density and volume measurement.
-
CT Colonoscopy*
Automatic segmentation of colorectum and electronic cleansing; virtual colonoscopy for a direct and efficient lesion measurement.
-
Dental Analysis*
Panoramic curve plotting, nerve line marking and sectional view analysis to diagnose dental diseases.
* is optional.
-
Head
-
Inner Ear
-
Lung
-
Joint
-
MAC (metal artifact correction)
-
Lombar Spine
-
Abdomen
-
Body CTA
